An Innovation in Giant Tire Repair

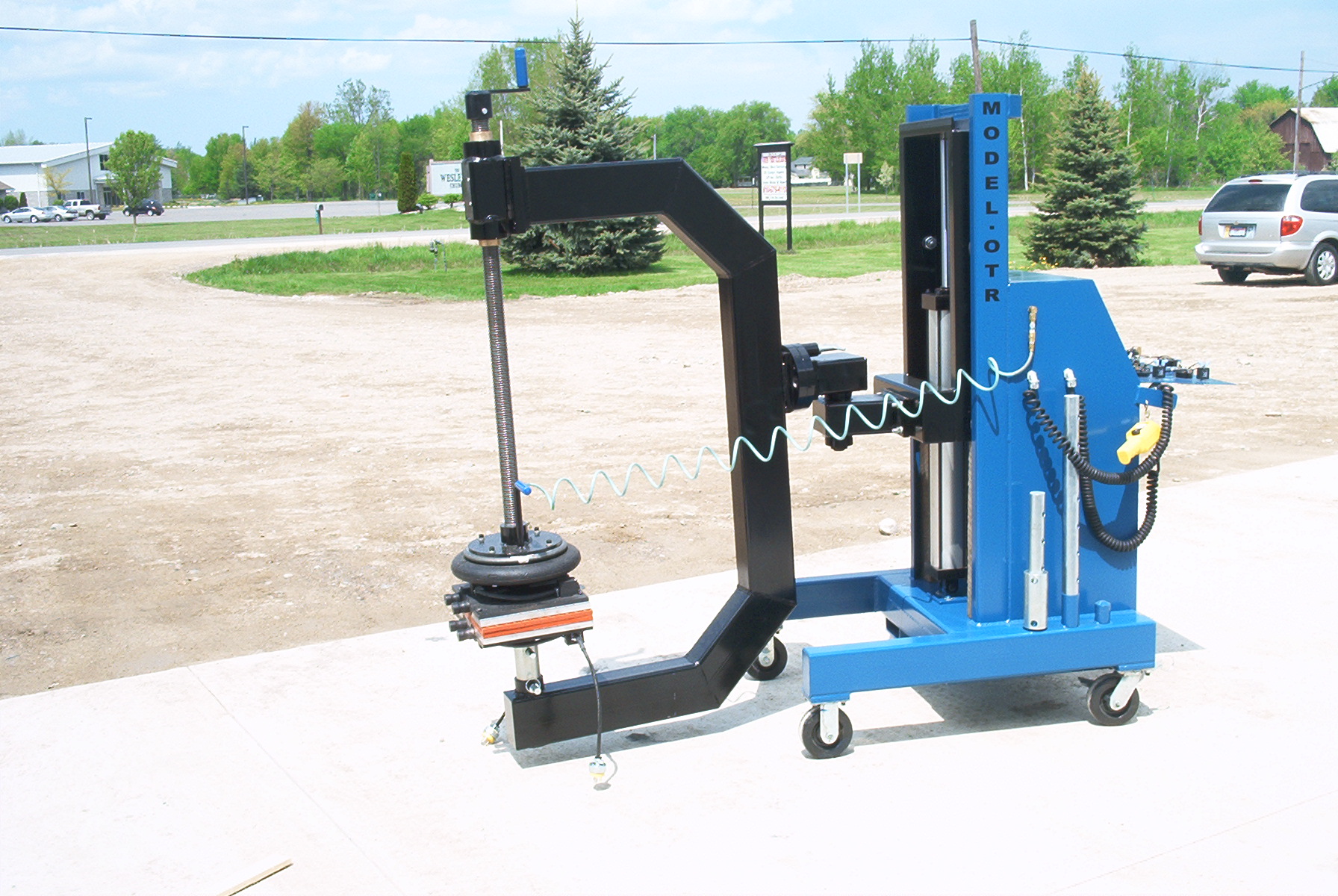

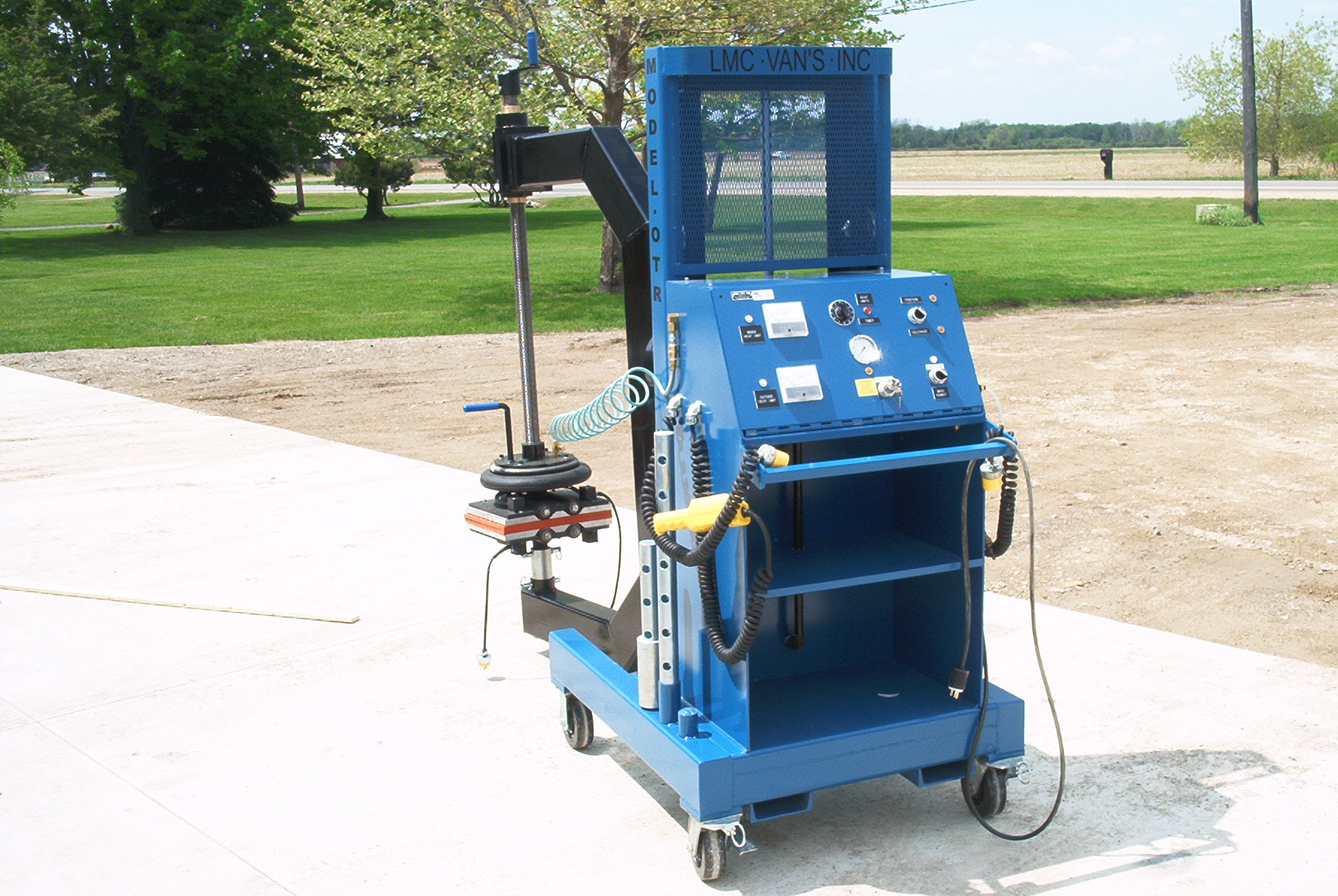

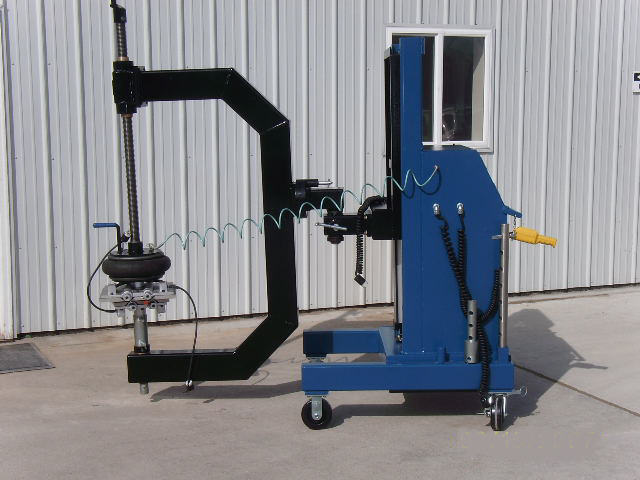

The OTR- Vulcanizer from L.M.C. Vans makes giant tire repairs for a fraction of the replacement cost of a new tire.

• Easy to use – requires only one operator
• Accommodates a wide range of tires from 20.5 x 25 to 45/65 x 45
• Remote – control hydraulic cylinder raises and lowers vulcanizing unit.
• Shipped fully assembled
• Thermostatically – controlled Adjust – A – Plates conform to tires contours.
• Air – actuator bag applies consistent pressure across repair area.
• Capable of curing large repairs.
• Casters for easy rotation, maximum mobility.
• Twelve – hour timer —shuts heat units off when curing cycle is complete. * Extension shafts supplied to accommodate various tire sidewall depths.
• Depth – 60″, Width – 36″, Height – 72″ * Two 13″ x 18″ and One 10″ x 12″ Silicone Rubber Heat unit cushion pads.
• Available Only in 120 volt – 15 amps

SPECIFICATIONS:

Shipping Volume: 192 cu. Ft 5.6 cu mtrs.
Contour plate size: 2- 12″ x 15″31 cm. x 38 cm
1- 8″ X 10″
No. curing heads: 3 ea. 3 ea.
Air pressure: 125 psi 9 bar
Throat Depth: 26 in. 66 cm.
Throat Height: 44 in. 112 cm.
Shipping Wt: 1750 lbs. 909 kg.

DOWNLOAD PRODUCT CATALOG
