Agricultural, Skidder and Other Off-The-Road Repair.

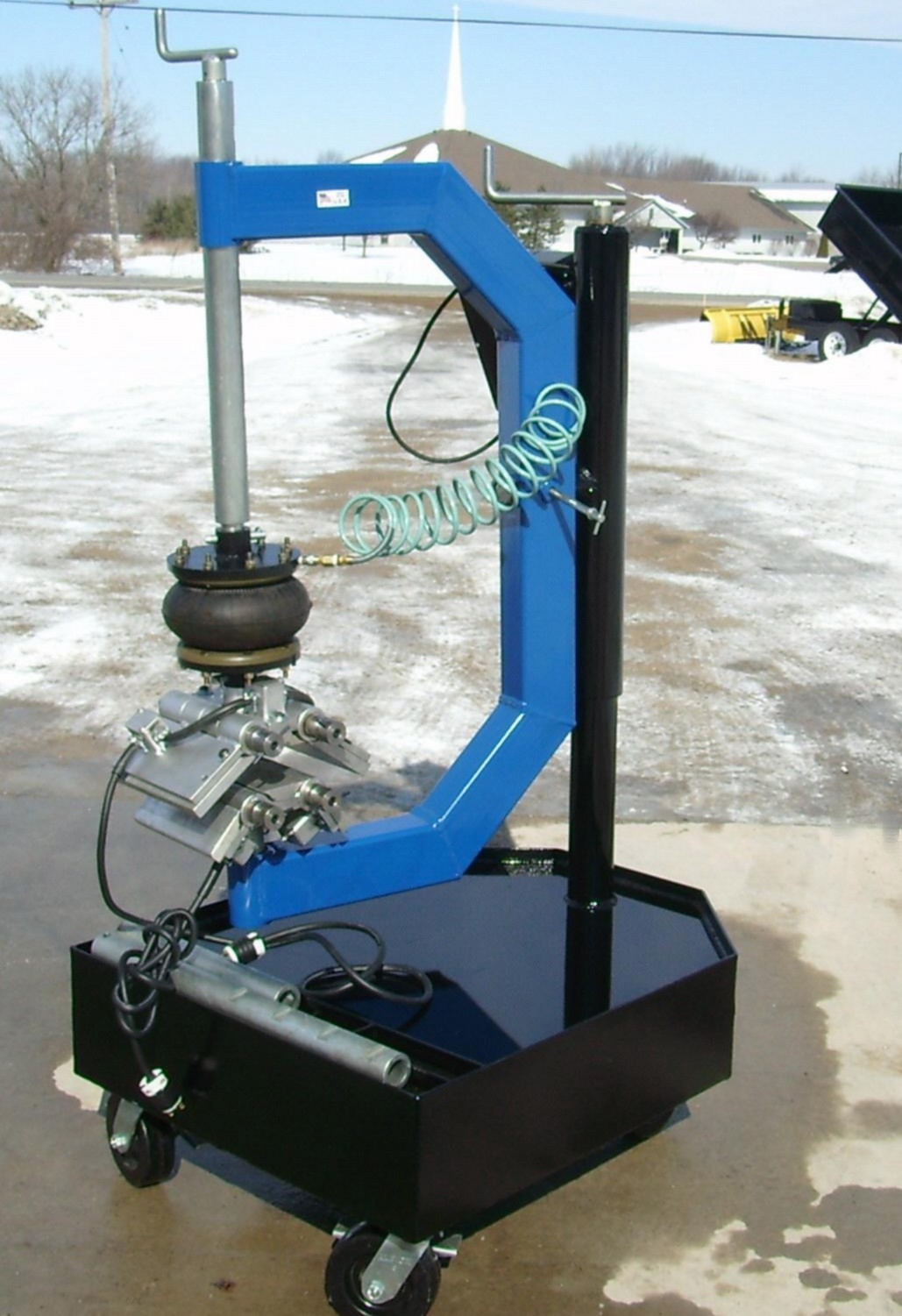

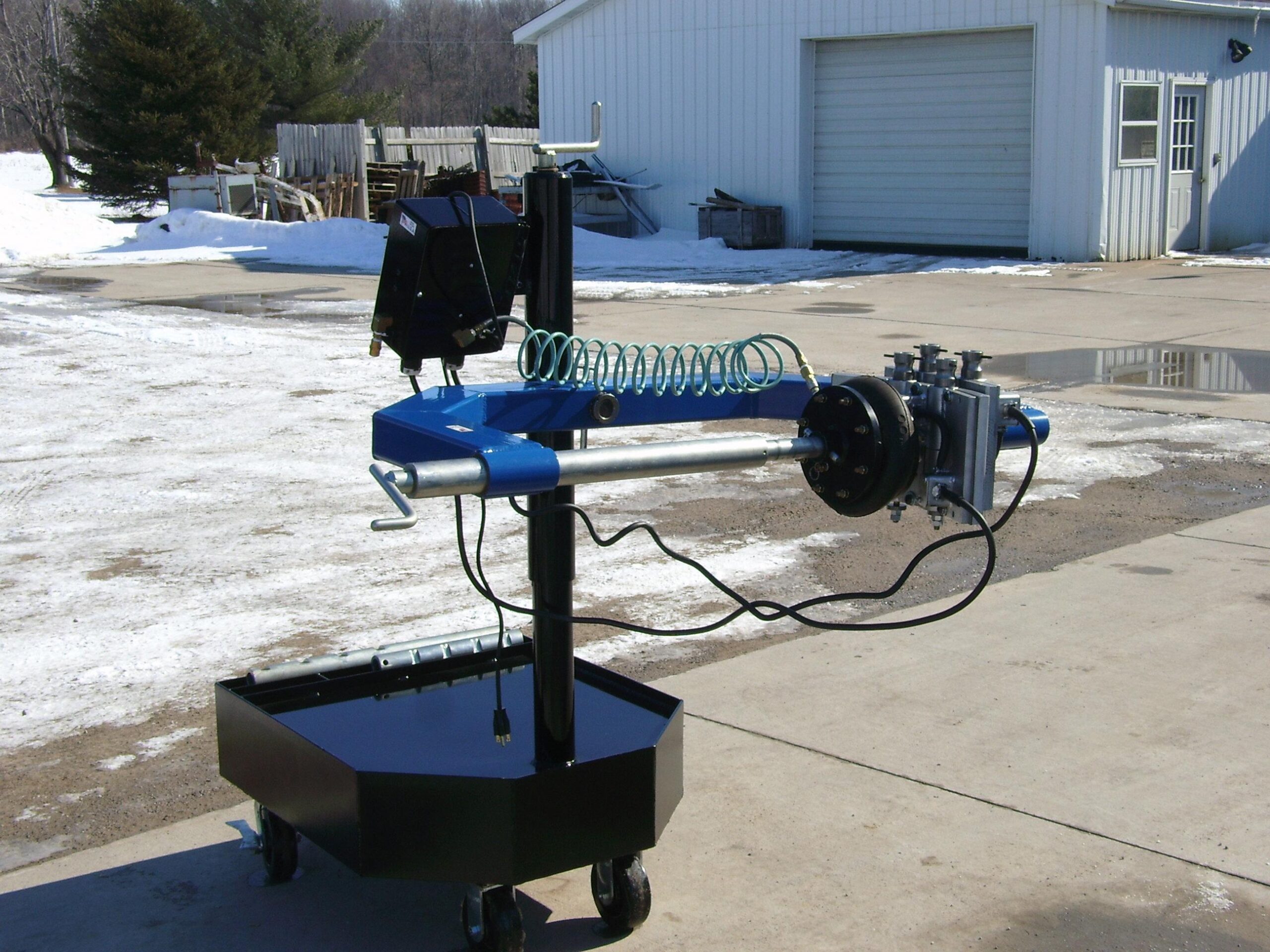

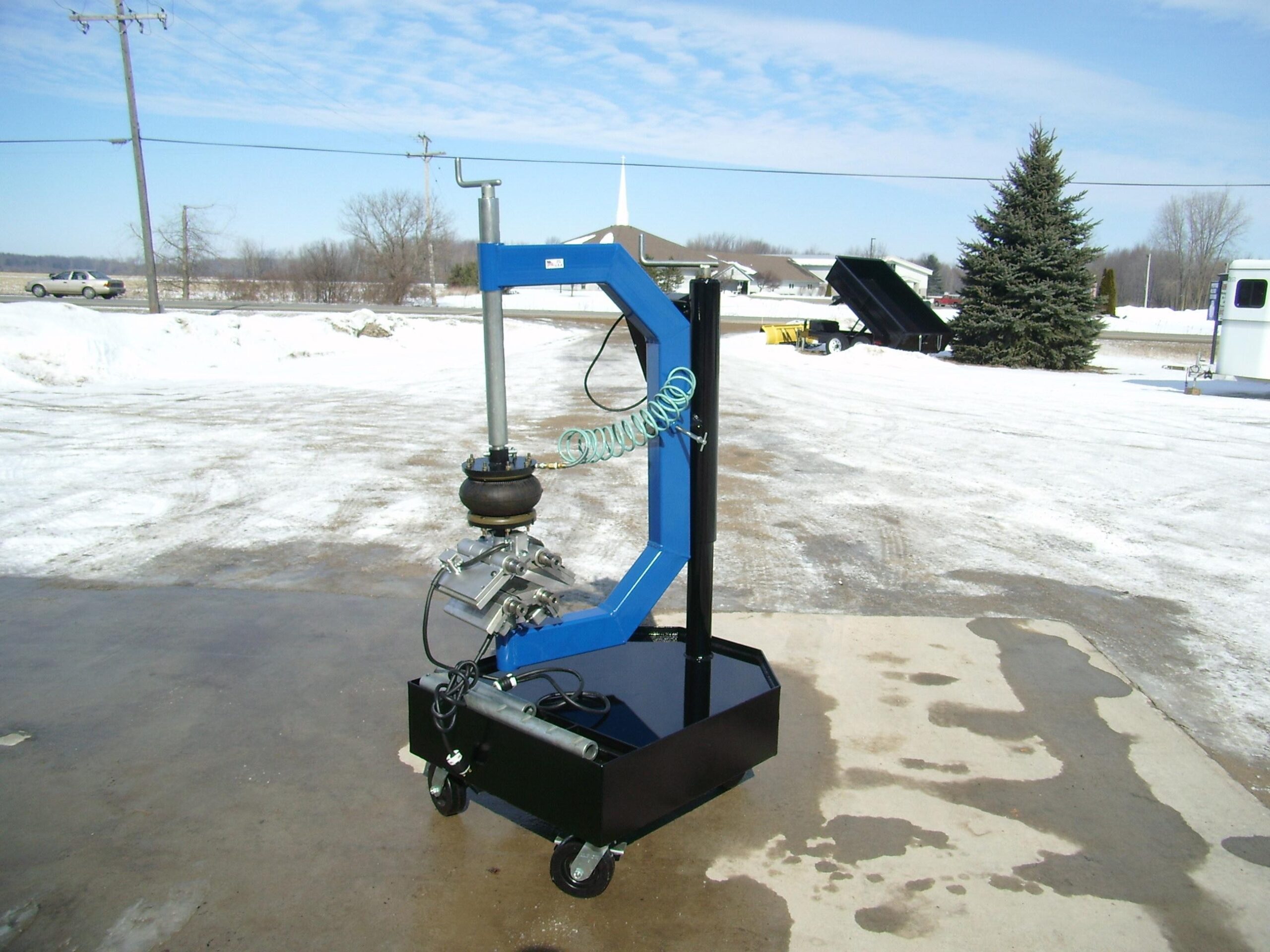

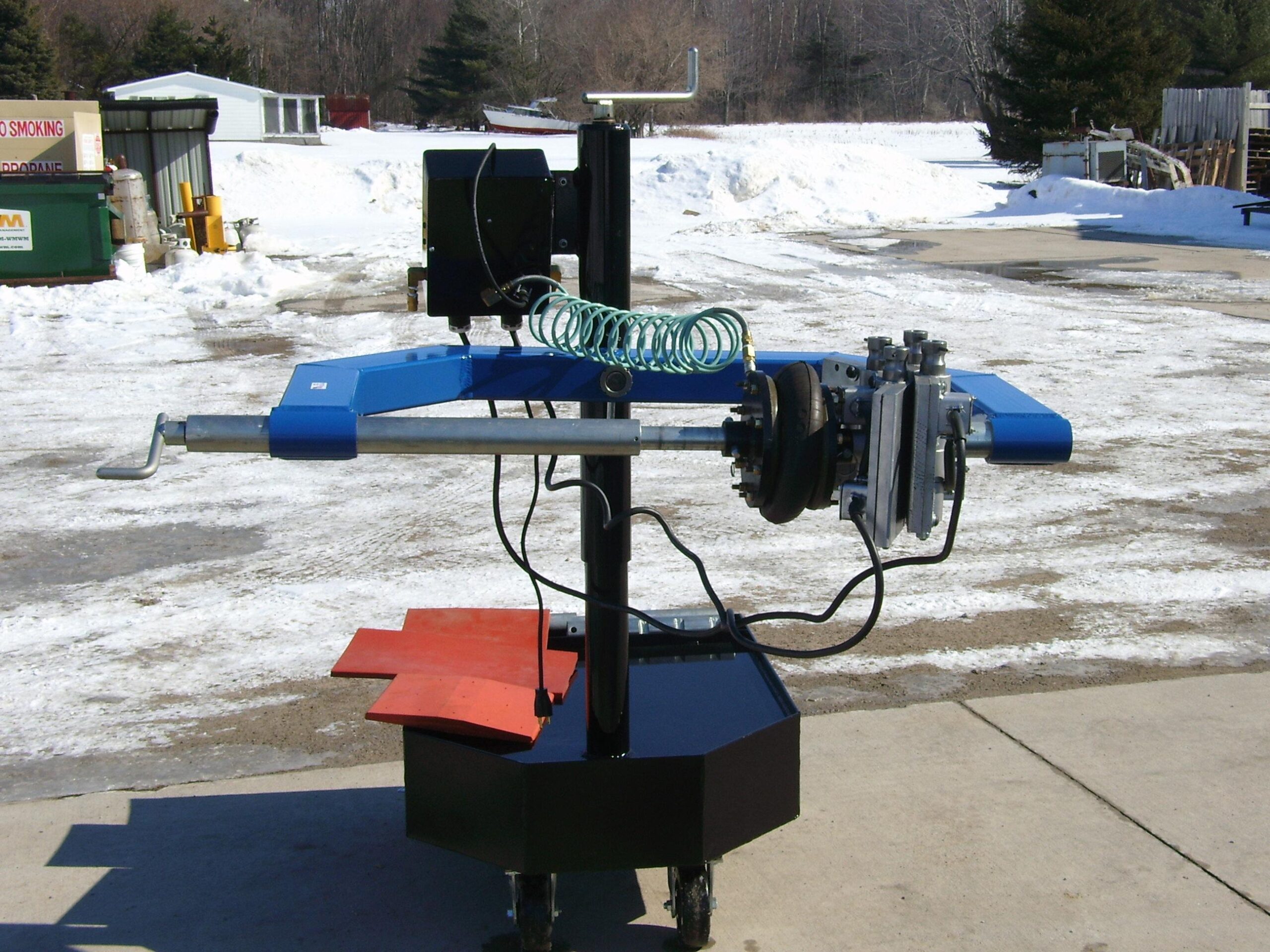

The New Multi-Use Tire Vulcanizer is the ideal size to handle tire repairs on light and medium construction
equipment, agricultural tractors, and logging skiddder, and mining equipment. Plus it is the most economically
priced vulcanizer of its size on the market, so you can make tire repairs for a fraction of the cost
of a replacement tire.

• Accommodates mid-range tires from 20.5 x 25 handling OTR sizes up to 29.5 x 35 and skidder tires up to 30.5 x 32.
• Easy, one person operation, including quick adjust tightening device.
• 8” x 11” inside and 8” x 15” outside Adjust-A-Plate contour plate system conforms to heating surface of tire contours. * Makes tread, shoulder, and sidewall repairs
• Air-Actuator bag applies over 5000 lbs. pressure evenly over entire repair area.
• Thermostatically controlled heat units to maintain optimum temperature.
• Built in-five-hour timer shuts off heat units when curing cycle is complete
• Wheeled cart provides maximum mobility
• Available Only in 120 Volt (11 amps).

SPECIFICATIONS:

Shipping weight:  950 lb 432 kg.
Shipping volume: 50 cu ft. 1,422 ltr.
Curing head Size: 8” x 10” 20 cm x 28 cm.
8” x 15” 20 cm x 38 cm.
No. Curing Heads: 2 2
Throat Depth: 18 in. 46 cm.
Throat Height: 32.5 in. 83 cm.
