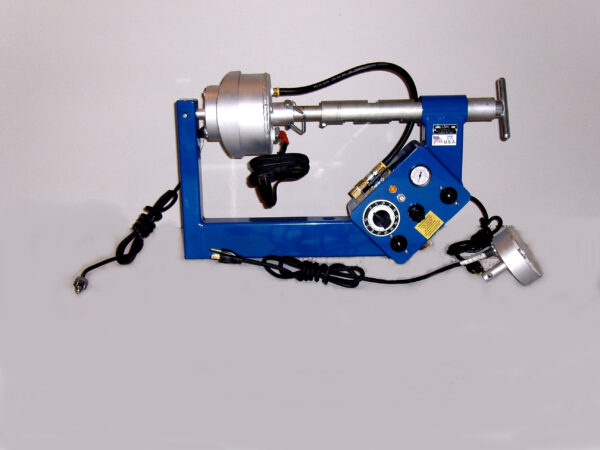

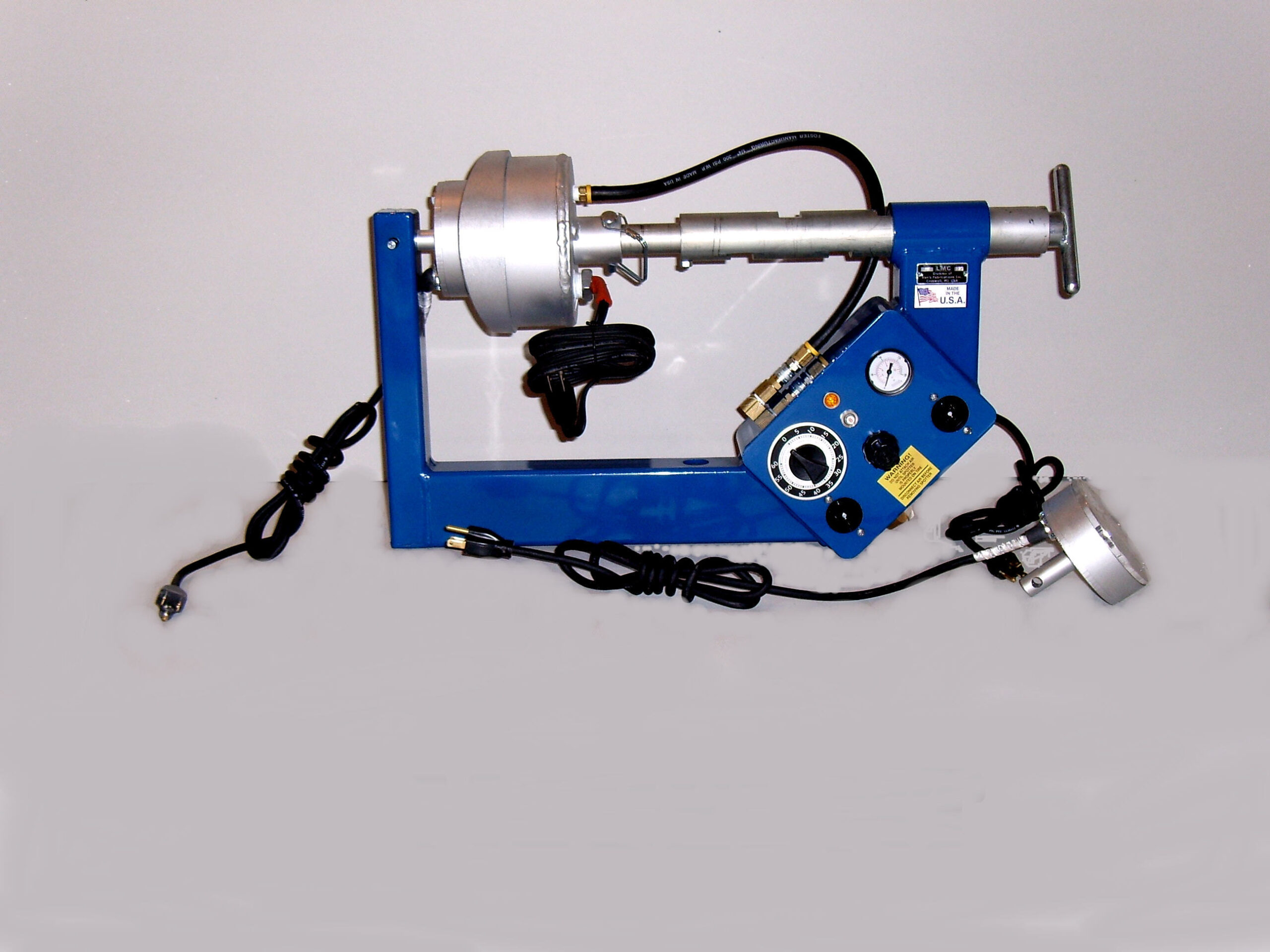

Medium Truck Tire Vulcanizer – Model MT
STEP UP TO THIS VERSATILE VULCANIZER
The all-new Model MT (T022) air-operated vulcanizer is the latest generation in repair equipment. Now repair the tread, shoulder, and sidewall areas of medium-sized (8:25 through 12:00) truck tires with one vulcanizer.
- Patented piston/pad air head produces professional-looking sidewall repairs that are unequalled in the industry.
- Tread and shoulder areas are solidly repaired with constant pressure provided by contour plates and a spring – loaded compensating system.
- Heat from both sides of tire offers maximum repair efficiency.
- Optional stand (T031) supports tire on roller assembly for easy rotation. Horzontal orientation of spotter makes alignment with repair easy and eliminates stress from repair area.
- For proper operation Contour plate set T155 contains 5 plates (T086, T087, T130, T131, T134) is required.
- Available in 120 volt or 240 volt.
SPECIFICATIONS
Shipping weight: 52 lb. 23 kg.
Shipping volume: 2 cu ft. 60.96 cu.cm
Curing head size: 6 in. 15 cm.
No. curing heads: 3 ea. 3 ea.
Throat depth: 8 in. 21 cm.
Throat height: 19 in. 48 cm.
